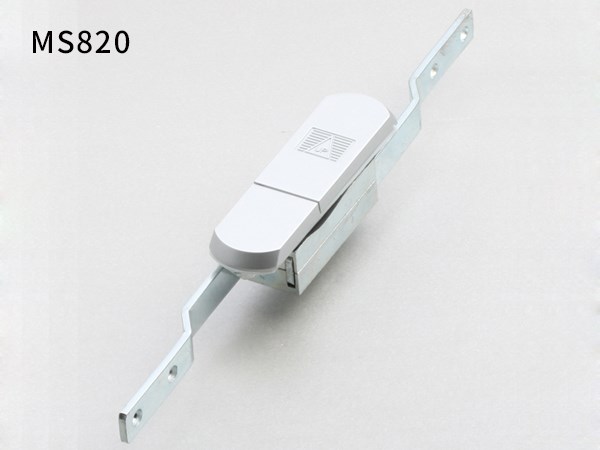

The MS820 rod control lock is configured with a series of accessories, like the nanometer painted ZDC panel, dustproof cap and insert, white zinc plated steel cam and rod latch, etc. Combined with the rod latch system, the product supports the opening or closing through the insert quarter turn rotation.
Technical Specifications| Specification | Model | ERP | Optional key |
| Hooked | MS820-1 | MS820Z2BT03001 | K15-01C |
| Triangular 8mm | MS820-3 | MS820Z2BT04001 | |
| Cross insert | MS820-4 | MS820Z2BE02001 |
Remarks: Keep rod and rod latch in place while removing the cam and insert, rotating the rod latch in 180° to suit RH or LH application.
