L Handle Lock, Quarter Turn Lock, Electromechanical Lock, Swing Handle Lock, Paddle Lock

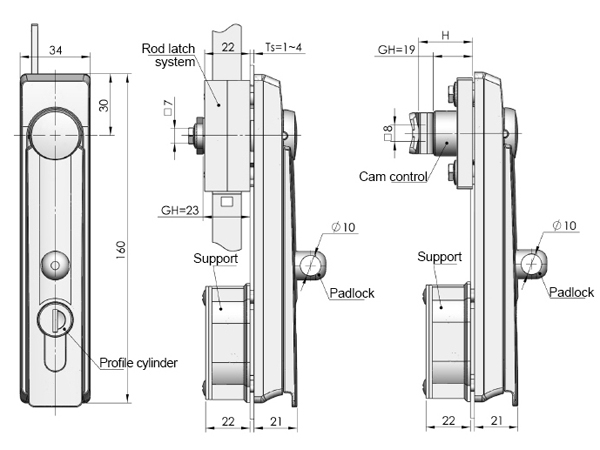

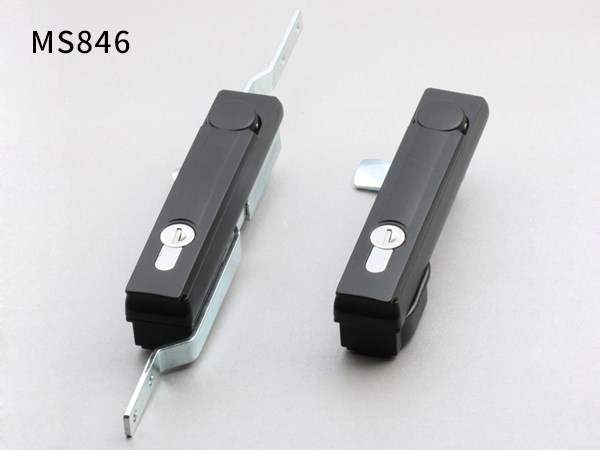

The MS846 rod control lock adopts the pocked black powder coated ZDC handle and housing, ZDC profile cylinder, white zinc plated steel cam and rod. This product is available for opening or closing through the 90 degree handle rotation with the help of rod latch. Moreover, our product is configured with the TC01 default profile cylinder and K140 default key.
Technical Specifications| Specification | Model | ERP |
| Optional rod latch system Mb01 | MS846-1 | MS846Z1B140001 |
| Optional rod latch system Mb01, allowing locking with padlock | MS846-1-P | MS846Z1B140002 |
| Optional rod latch system Mb02 | MS846-1-2 | MS846Z1B140005 |
| Optional rod latch system Mb02, allowing locking with padlock | MS846-1-2P | MS846Z1B140007 |
| Cam latch system | MS846-2 | MS846Z1B140003 |
| Cam latch system, allowing locking with padlock | MS846-2-P | MS846Z1B140004 |
Optional accessories
Cam latch system Mb9 series, rod latch system Mb0 series, TC01/TC02/TC03 profile cylinder.
Remarks: PA housing or ZDC housing, default ZDC housing
