MS807-1/MS807-2/MS807-3 Handle Lock

Home » Products » Handle Lock » MS807-1/MS807-2/MS807-3 Handle Lock
Inquiry

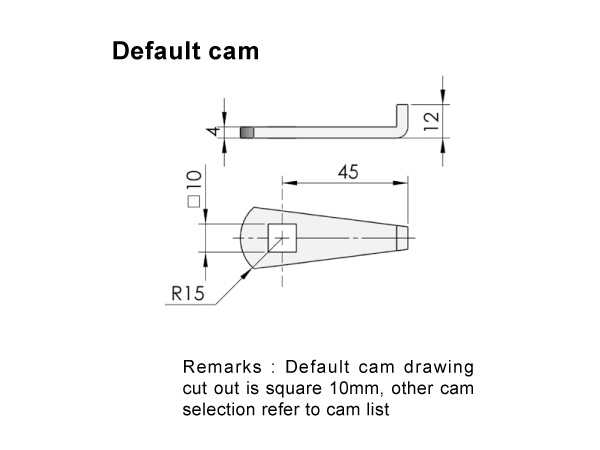

The MS807-1, MS807-2 or MS807-3 handle lock is equipped with the bright chrome plated ZDC handle, housing and insert, teeth washer, shaft, white adjustable zinc coated steel cam and dustproof sealing cap. Moreover, this product adopts the K050 default key. The default cam can be steel S1C45Y00003 and stainless steel S1C45Y00004.

Technical Specifications

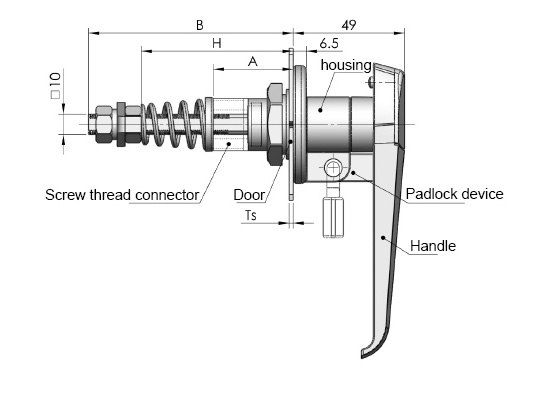

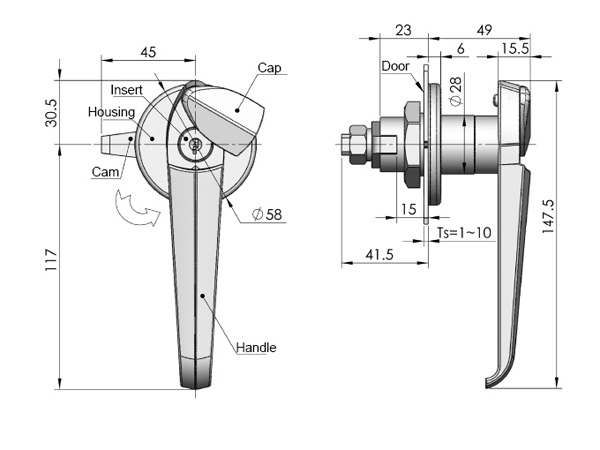

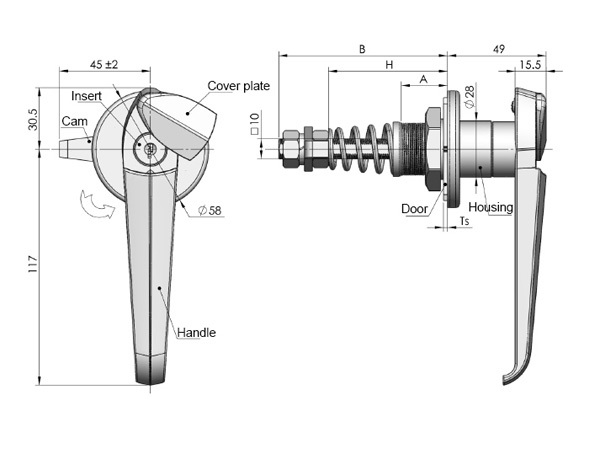

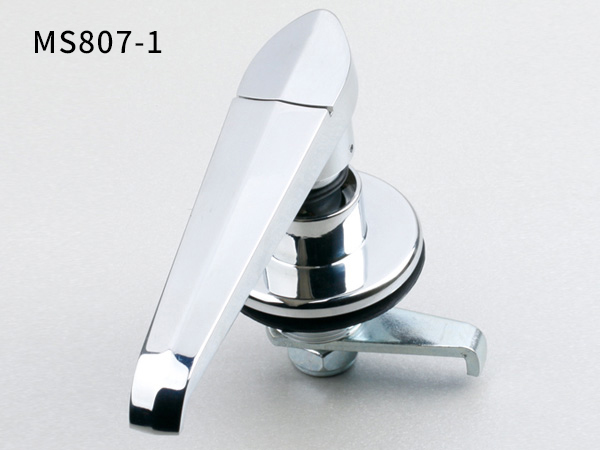

Specification MS807-1 Series
Bright chrome-plated ZDC housing, handle, cap S.S housing, handle, cap
Model ERP Model ERP
A=23 B=83 H=45~58 60° For RH an LH MS807-1 MS807Z3A050029 MS807-1B MS807S4A050010
90° RH MS807-1-Y MS807Z3A050036
90° LH MS807-1-Z MS807Z3A050039
A=40 B=103 H=52~75 60° For RH an LH MS807-1-D1 MS807Z3A050002 MS807-1B-1 MS807S4A050011
90° RH MS807-1-Y1 MS807Z3A050005
90° LH MS807-1-Z1 MS807Z3A050008
A=63 B=103 H=75~80 60° For RH an LH MS807-1-D2 MS807Z3A050003 MS807-1B-2 MS807S4A050012
90° RH MS807-1-Y2 MS807Z3A050006
90° LH MS807-1-Z2 MS807Z3A050009

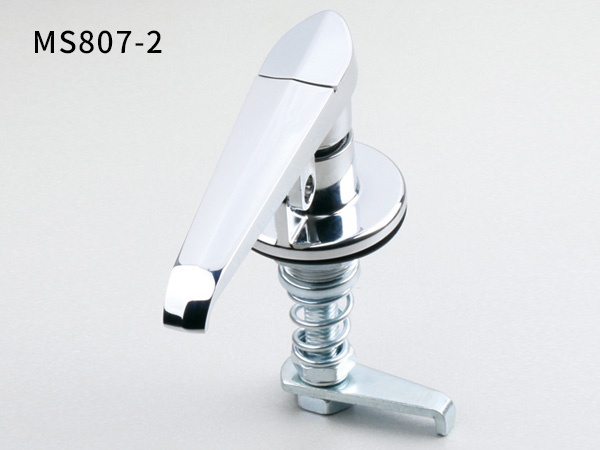

Specification MS807-2 Series
Bright chrome-plated ZDC housing, handle, cap S.S housing, handle, cap
Model ERP Model ERP
A=23 B=83 H=45~58 60° For RH an LH
90° RH MS807-2-Y MS807Z3A050011 MS807-2B-Y MS807S4A050001
90° LH MS807-2-Z MS807Z3A050010 MS807-2B-Z MS807S4A050019

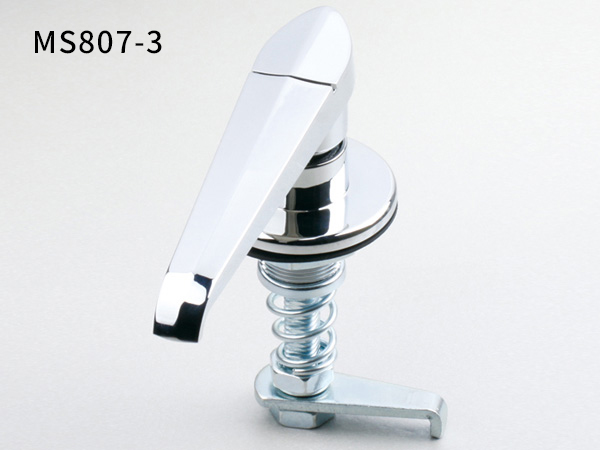

Specification MS807-3 Series
Bright chrome-plated ZDC housing, handle, cap S.S housing, handle, cap
Model ERP Model ERP
A=23 B=83 H=45~58 60° For RH an LH MS807-3 MS807Z3A050017 MS807-3B MS807S4A050003
90° RH MS807-3-Y MS807Z3A050018 MS807-3B-Y MS807S4A050024
90° LH MS807-3-Z MS807Z3A050019 MS807-3B-Z MS807S4A050025
